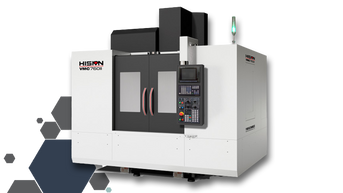

VMC760 II Machining Capacity: X Travel: 760 mm | Y Travel: 400 mm | Z Travel: 500 mm Spindle Nose to Table Surface: 150-650 mm Table: Table Size: 900×400 mm Table Load: 0.3 t T Slot: 18x125x3 mm Feed Rate: Rapid Traverse (X/Y/Z): 36/36/36 m/min Cutting Feedrate (X/Y/Z): 15/15/15 m/min Spindle: Max Spindle Speed: 8000 RPM Spindle Power: 5.5/7.5 kW Spindle Torque: 35/47.7 N.m Spindle Taper: BT40 Tool Magazine: Tool Magazine Capacity: 24 T Tool Magazine Type: Arm Type Max Tool Diameter (Adjacent Vacant): Φ78(Φ150) mm Max Tool Length: 300 mm Max Tool Weight: 7 kg Tool Change Time: 2.5 s Other: Power Capacity: 25 kVA Machine Weight: 5.5 t Machine Size (L×W×H): 230x325x255 cm Standard Configuration: Controller: Mitsubishi M80B Spindle Air Blow Spindle Air Seal Spindle Oil Chiller Pneumatic and Lubrication System Coolant System Rigid Tapping Direct Drive Spindle 20000rpm 16T Disc Type ATC 3-Color Signal Lamp, Working Light Option Configuration: Controller: M80A Controller: Siemens 828D CNC Rotary Table (4th Axis) Pre-reserve CNC Rotary Table Interface Tool Setter Full Enclosure with Top Cover Oil Mist Collector Workpiece Air Blow Workpiece Probe (2D) Air Gun Water Gun 10000rpm Belt Drive Spindle Coolant Through Spindle (2-6MPa) Spindle Ring Spray Oil Skimmer Oil Mist Collector External Chain Type Chip Conveyor and Trolley External Scraper Type Chip Conveyor and Trolley 12000rpm Directly Drive Spindle
VMC850 II Machining Capacity: X Travel: 850 mm | Y Travel: 500 mm | Z Travel: 500 mm Spindle Nose to Table Surface: 150-650 mm Table: Table Size: 1000×500 mm Table Load: 0.6 t T Slot: 18x80x5 mm Feed Rate: Rapid Traverse (X/Y/Z): 36/36/36 m/min Cutting Feedrate (X/Y/Z): 15/15/15 m/min Spindle: Max Spindle Speed: 8000 RPM Spindle Power: 7.5/11 kW Spindle Torque: 35.8/70 N.m Spindle Taper: BT40 Tool Magazine: Tool Magazine Capacity: 24 T Tool Magazine Type: Arm Type Max Tool Diameter (Adjacent Vacant): Φ78(Φ150) mm Max Tool Length: 300 mm Max Tool Weight: 7 kg Tool Change Time: 2.5 s Other: Power Capacity: 25 kVA Machine Weight: 6 t Machine Size (L×W×H): 250x340x255 cm Standard Configuration: Controller: Mitsubishi M80B Spindle Air Blow Spindle Air Seal Spindle Oil Chiller Pneumatic and Lubrication System Coolant System Rigid Tapping Direct Drive Spindle 20000rpm 24T Arm Type ATC 3-Color Signal Lamp, Working Light Option Configuration: Controller: M80A Controller: Siemens 828D CNC Rotary Table (4th Axis) Pre-reserve CNC Rotary Table Interface Tool Setter Full Enclosure with Top Cover Oil Mist Collector Workpiece Air Blow Workpiece Probe (2D) Air Gun Water Gun 10000rpm Belt Drive Spindle Coolant Through Spindle (2-6MPa) Spindle Ring Spray Oil Skimmer Oil Mist Collector External Chain Type Chip Conveyor and Trolley External Scraper Type Chip Conveyor and Trolley 12000rpm Directly Drive Spindle
VMC1000 II Machining Capacity: X Travel: 1000 mm | Y Travel: 600 mm | Z Travel: 600 mm Spindle Nose to Table Surface: 150-750 mm Table: Table Size: 1200×600 mm Table Load: 0.8 t T Slot: 18x100x5 mm Feed Rate: Rapid Traverse (X/Y/Z): 36/36/36 m/min Cutting Feedrate (X/Y/Z): 15/15/15 m/min Spindle: Max Spindle Speed: 8000 RPM Spindle Power: 7.5/11 kW Spindle Torque: 35.8/70 N.m Spindle Taper: BT40 Tool Magazine: Tool Magazine Capacity: 24 T Tool Magazine Type: Arm Type Max Tool Diameter (Adjacent Vacant): Φ78(Φ150) mm Max Tool Length: 300 mm Max Tool Weight: 7 kg Tool Change Time: 2.5 s Other: Power Capacity: 25 kVA Machine Weight: 6.5 t Machine Size (L×W×H): 280x355x265 cm Standard Configuration: Controller: Mitsubishi M80B Spindle Air Blow Spindle Air Seal Spindle Oil Chiller Pneumatic and Lubrication System Coolant System Rigid Tapping Direct Drive Spindle 20000rpm 24T Arm Type ATC 3-Color Signal Lamp, Working Light Option Configuration: Controller: M80A Controller: Siemens 828D CNC Rotary Table (4th Axis) Pre-reserve CNC Rotary Table Interface Tool Setter Full Enclosure with Top Cover Oil Mist Collector Workpiece Air Blow Workpiece Probe (2D) Air Gun Water Gun 10000rpm Belt Drive Spindle Coolant Through Spindle (2-6MPa) Spindle Ring Spray Oil Skimmer Oil Mist Collector External Chain Type Chip Conveyor and Trolley External Scraper Type Chip Conveyor and Trolley 12000rpm Directly Drive Spindle
VMC1200 II Machining Capacity: X Travel: 1200 mm | Y Travel: 600 mm | Z Travel: 600 mm Spindle Nose to Table Surface: 150-750 mm Table: Table Size: 1300×600 mm Table Load: 0.6 t T Slot: 18x100x5 mm Feed Rate: Rapid Traverse (X/Y/Z): 36/36/36 m/min Cutting Feedrate (X/Y/Z): 15/15/15 m/min Spindle: Max Spindle Speed: 8000 RPM Spindle Power: 7.5/11 kW Spindle Torque: 35.8/70 N.m Spindle Taper: BT40 Tool Magazine: Tool Magazine Capacity: 24 T Tool Magazine Type: Arm Type Max Tool Diameter (Adjacent Vacant): Φ78(Φ150) mm Max Tool Length: 300 mm Max Tool Weight: 7 kg Tool Change Time: 2.5 s Other: Power Capacity: 30 kVA Machine Weight: 7 t Machine Size (L×W×H): 315x355x270 cm Standard Configuration: Controller: Mitsubishi M80B Spindle Air Blow Spindle Air Seal Spindle Oil Chiller Pneumatic and Lubrication System Coolant System Rigid Tapping Direct Drive Spindle 20000rpm 24T Arm Type ATC 3-Color Signal Lamp, Working Light Option Configuration: Controller: M80A Controller: Siemens 828D CNC Rotary Table (4th Axis) Pre-reserve CNC Rotary Table Interface Tool Setter Full Enclosure with Top Cover Oil Mist Collector Workpiece Air Blow Workpiece Probe (2D) Air Gun Water Gun 10000rpm Belt Drive Spindle Coolant Through Spindle (2-6MPa) Spindle Ring Spray Oil Skimmer Oil Mist Collector External Chain Type Chip Conveyor and Trolley External Scraper Type Chip Conveyor and Trolley 12000rpm Directly Drive Spindle
